DYS Osprey SX7V1 7-Inch Waterproof FPV Drone Frame Kit

The DYS Osprey SX7V1 is a 7-inch waterproof FPV drone frame kit designed for custom drone builders, UAV technicians, FPV pilots, engineering teams and professional users who need a strong carbon fibre airframe for larger multi-rotor projects.

Built as a dedicated waterproof FPV drone frame kit, the Osprey SX7V1 provides the structural foundation for a custom 7-inch drone build. It is suitable for long-range FPV platforms, field-use UAV projects, inspection drone development, technical training, robotics work, research applications and advanced hobby builds where frame strength, equipment layout and environmental protection are important.

With a 327 mm wheelbase, carbon fibre plate construction, 6 mm arm thickness and a complete kit of mounting plates, panels, straps, hardware and waterproof CNC components, the DYS Osprey SX7V1 gives builders a serious frame platform for assembling a capable 7-inch FPV or UAV aircraft.

Please note: this is a frame kit only, not a complete ready-to-fly drone. Motors, ESC, flight controller, battery, receiver, camera system, video transmitter, propellers and radio equipment are required separately unless specifically supplied as part of another package.

Key Features

7-inch waterproof FPV drone frame kit

Designed for custom FPV, UAV and multi-rotor builds

327 mm wheelbase

Strong carbon fibre airframe structure

6 mm arm thickness for high structural rigidity

3 mm bottom plate thickness

2 mm top, upper and camera plate thickness

Suitable for long-range FPV, waterproof drone builds and field-use UAV projects

Supports 19 × 19 mm motor mounting

Supports 25 × 25 mm VTX mounting

Supplied with multiple CNC waterproof components and TPU/printed parts

Suitable for experienced builders, drone technicians, engineering teams and professional UAV developers

Professional & Technical Applications

The DYS Osprey SX7V1 frame kit is suitable for:

7-inch FPV drone builds

Long-range FPV platforms

Waterproof drone projects

Coastal and wet-environment drone development

Inspection drone frame builds

Field observation UAV projects

Robotics and autonomous drone research

Engineering and university UAV projects

Drone repair and rebuild work

Professional UAV prototyping

FPV resellers and wholesale drone parts buyers

This frame is especially useful for buyers who want to create a more specialised UAV platform instead of buying a pre-built complete drone.

Technical Specification

Specification Details

Brand DYS

Product Name DYS 7 Inch Osprey SX7V1 Waterproof FPV Drone Frame Kit

Model / Item No. Osprey SX7V1 WP Frame

Frame Type Waterproof FPV Drone Frame Kit

Suggested Propeller Class 7 inch

Wheelbase 327 mm

Frame Dimensions L255 × W262 × H90 mm

Frame Body Dimension 34 mm

Arm Thickness 6 mm

Bottom Plate Thickness 3 mm

Top Plate Thickness 2 mm

Upper Plate Thickness 2 mm

Camera Plate Thickness 2 mm

Motor Mounting 19 × 19 mm

VTX Mounting 25 × 25 mm

Weight 332 g, excluding TPU parts

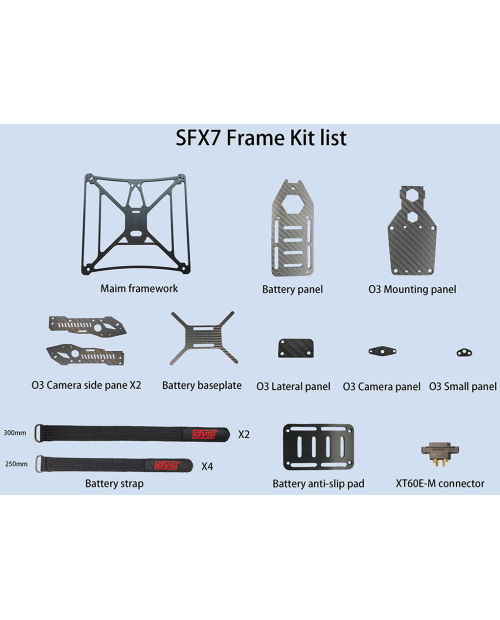

Included Frame Kit Components

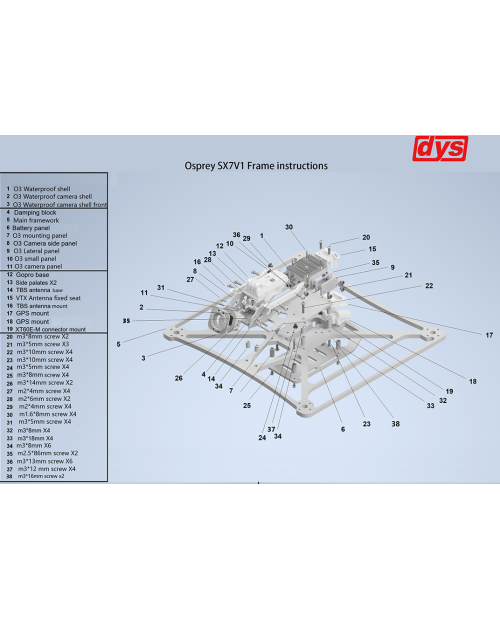

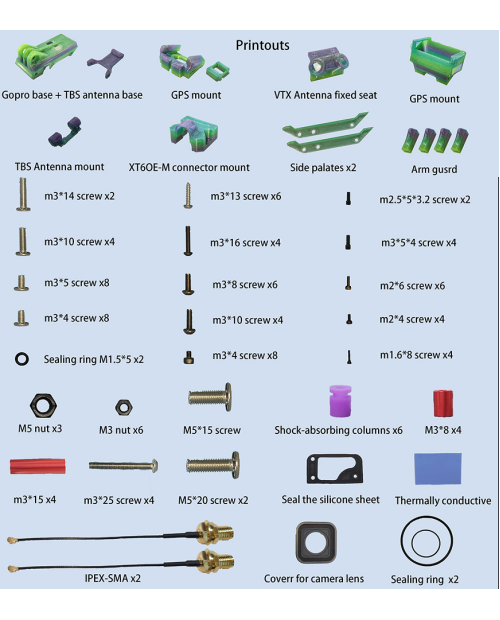

The frame kit list includes the main framework, mounting panels, carbon plates, straps, CNC waterproof parts, TPU/printed parts and assembly hardware.

Included components

Main framework

Battery panel

O3 mounting panel

O3 camera side panels

Battery baseplate

O3 lateral panel

O3 camera panel

O3 small panel

Battery straps

Battery anti-slip pad

XT60E-M connector

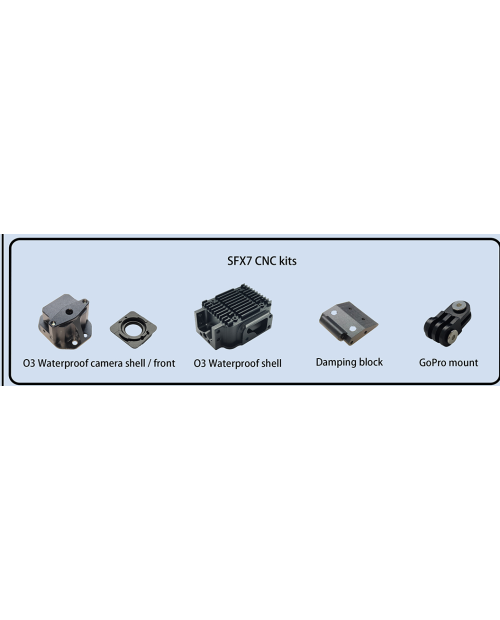

O3 waterproof camera shell/front

O3 waterproof shell

Damping block

GoPro mount

GoPro base and TBS antenna base

GPS mounts

VTX antenna fixed seat

TBS antenna mount

XT60E-M connector mount

Side plates

Arm guard

Screw set and fixing hardware

Sealing rings

Shock-absorbing columns

Thermally conductive sheet

IPEX-SMA antenna cables

Cover for camera lens

Why Choose the DYS Osprey SX7V1 Frame Kit?

The DYS Osprey SX7V1 is not a basic hobby frame. It is a larger 7-inch waterproof FPV airframe platform designed for users who want to build a more capable drone around their own electronics, propulsion system and radio setup.

Its 327 mm wheelbase gives builders more room than a typical 5-inch frame, while the reinforced plate structure and waterproof-focused shell components make it suitable for more demanding field applications. For advanced FPV builders, technical educators and professional UAV developers, the Osprey SX7V1 offers a strong foundation for custom drone projects where durability, component protection and layout flexibility matter.

Important Compatibility Note

This product is supplied as a frame kit only. It does not include motors, ESC, flight controller, propellers, receiver, battery, charger, radio transmitter, goggles or DJI O3 Air Unit unless specifically stated.

Professional assembly, configuration and testing are required before flight. Buyers should confirm compatibility with their chosen motors, flight controller, ESC, camera system, VTX, GPS, antennas and battery setup before purchase.
