FEETECH STS3215 30kg 12V TTL Serial Bus Smart Servo – ST-3215-C018

FEETECH STS3215 30kg 12V TTL Serial Bus Smart Servo – ST-3215-C018

  • £25.00

This product has a minimum quantity of 11

FEETECH STS3215 30kg 12V TTL Serial Bus Smart Servo – ST-3215-C018

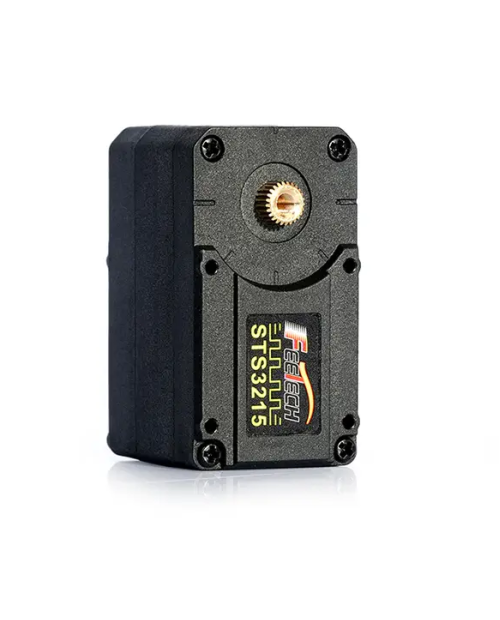

The FEETECH STS3215 (ST-3215-C018) is a powerful 12V intelligent TTL serial bus servo delivering 30kg·cm peak stall torque, precise 12-bit magnetic encoder feedback and versatile 360° position control. Featuring a robust metal gearbox, dual-axis design and real-time operating feedback, it is an excellent choice for robotic arms, articulated robots, automation prototypes and advanced motion-control projects. Supports compatible serial bus controllers; not a standard PWM servo.


Interface: TTL Half-Duplex Serial Bus
Voltage: 12 V nominal
Peak stall torque: 30 kg·cm @ 12 V
Rated torque: 10 kg·cm @ 12 V
No-load speed: 0.222 sec/60° @ 12 V
Encoder: 12-bit Magnetic
Position resolution: 4096 positions/360°
Output: Dual-axis
Gearbox: Metal
Weight: 55 ± 1 g

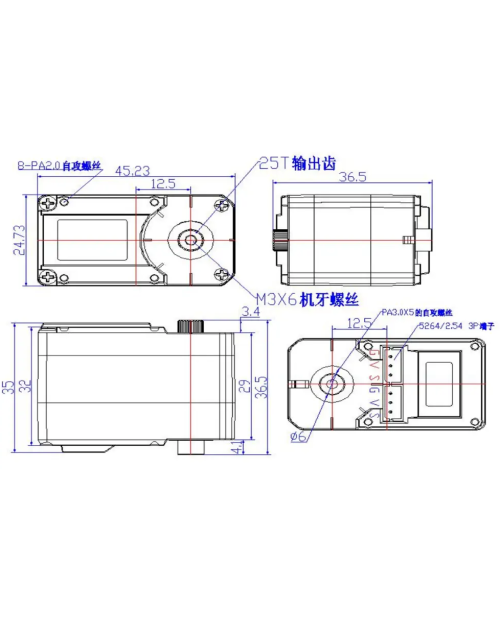

Dimensions: 45.2 × 24.7 × 35 mm
Stall current: 2.7 A @ 12 V
Communication speed: 38,400 bps–1 Mbps
